Arduino Nano Rev3

This board is based on and fully compatible with Arduino Nano R3. The Roboduino Nano R3 is a surface mount breadboard compatible version of the ever-popular Arduino micro controller. It’s small, has integrated USB, and is breadboard friendly. It has more or less the same functionality of the Arduino Duemilanove but in a different package. Physically, it’s missing the power jack, but it can still sense and switch to the higher potential source of power. It’s perfect for embedding into your next project. Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux). The Cable for Arduino Nano (USB 2.0 A to USB 2.0 Mini B) 30cm can be used to connect your Arduino Nano to PC or any USB 2.0 A device. This can be used for any high speed applications for communication between PC and USB 2.0 mini B device also.

Features:

1. Microcontroller: Atmel ATmega328
2. Operating Voltage (logic level): 5V
3. Input Voltage (recommended): 7-12V
4. Input Voltage (limits): 6-20V
5. Digital I/O Pins: 14 (of which 6 provide PWM output)
6. Analog Input Pins: 8
7. DC Current per I/O: Pin 40mA
8. Flash Memory: 32KB (of which 2KB used by bootloader)
9. SRAM: 2KB
10. EEPROM: 1KB
11. Clock Speed: 16MHz

Specifications:

1. USB 2.0 Male A to Mini B 5-pin cable.
2. Allows you to connect Arduino Nano V3 with Mini USB port to computer.
3. Up to 480 Mbps data transfer rate.
4. Cable Total Length: 30 cm.
5. Weight: 15 gm.

Package Includes:

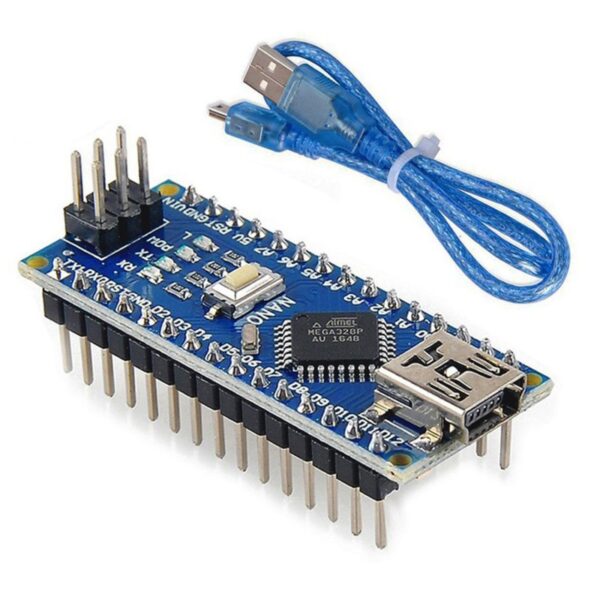

• Arduino Nano R3 Board CH340 Chip
• 1 x Cable for Arduino Nano (USB 2.0 A to USB 2.0 Mini B

Documents:

• Schematic
• Eagle Files
• Arduino IDE Download
