WEMOS D1 Mini NodeMcu

৳ 480.00

WeMos D1 Mini NodeMcu 4M Bytes Lua WIFI Internet Of Things Development Board Based ESP8266

Description

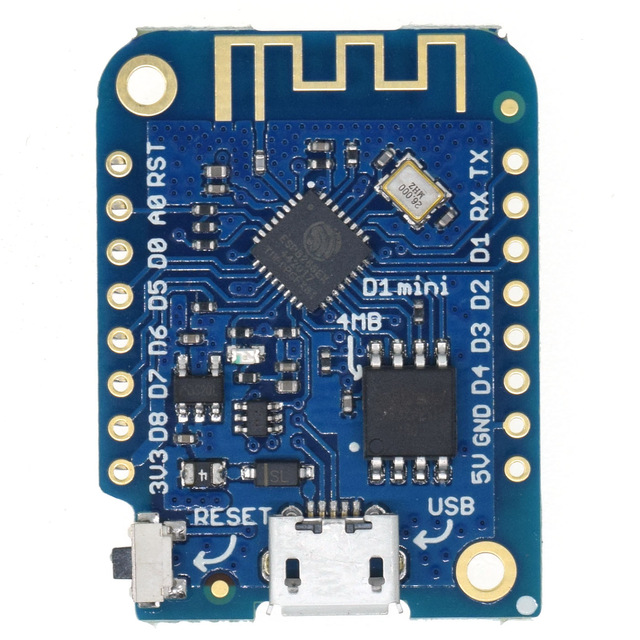

WeMos D1 Mini V2 NodeMcu

The WeMos D1 mini V2 is minimal ESP8266 wifi board.
The D1 mini is a mini wifi board based on ESP-8266EX.
Board size: 34.2mm*25.6mm
More infos here: http://www.wemos.cc

Feature:

– 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except  D0)
– 1 analog input(3.2V max input)
– a Micro USB connection
– Compatible with Arduino  https://github.com/esp8266/Arduino
– Compatible with nodemcu  http://www.nodemcu.com

What is new about V2:

1. Use BRT (Bias Resistor Transistor), easier into flash mode.
2. 30% increase in radiating area, more stable.

Package included:

1 x WeMos D1 mini
2 x Long female pin
2 x Short female pin
2 x Normal pin

Additional information

Dimensions 3.42 × 2.56 cm
